Jenkinsfile Cheat Sheet¶
Have a look on the official Jenkins documentations
Adding Comments in Jenkinsfile¶
// This is a single-line comment
/*
This is a multi-line comment.{
It spans multiple lines.
*/
Pipeline Definition¶
pipeline {
agent any // agent is a directive
agent {label 'slave-1'} // specify a specific agent
}
agent {
label 'slave-1'
}
Tools¶
tools {
maven "maven3"
jdk "jdk17"
nodejs 'nodejs23'
}
Parameters¶
- Use this directive when the pipeline is not parameterized.
- Parameters: string, choice, boolean, file
parameters { choice choices: ['main', 'dev', 'ibtisam'], description: 'write description', name: 'env' string defaultValue: 'main', description: 'enter description', name: 'Branch_name' }
Stages¶
Parallel Stages¶
stages {
stage('Hello Parallel') {
parallel {
stage('Stage One') {
steps {
echo 'Running Stage One'
}
}
stage('Stage Two') {
steps {
echo 'Running Stage Two'
}
}
}
}
Sequential Stages¶
stage('Hello World') { // copy 5 lines from stage('Hello') and paste for new stage
steps {
echo "Hello World" // it runs inside Jenkins itself.
}
}
stage('Hello sh') {
steps {
sh 'echo "Hello World"' // it runs on the Jenkins agent/slave.
}
}
stage('Git Checkout') {
steps {
git branch: "${params.Branch_name}", url: 'Github URL' // Use when the pipeline is parameterized.
}
}
stage('Compile') {
steps {
dir('03.Projects/00.LocalOps/0.1.01-jar_Boardgame') {
sh 'mvn compile'
}
}
}
stage('Test') {
// executes this stage only if any change happens in 'path_to_file.txt'
when {
changeset 'path_to_file.txt'
}
steps {
echo 'mvn test'
}
}
stage('Package') {
steps {
sh "mvn clean package"
}
}
stage('Deploy') {
steps {
// deploy to tomcat server
deploy adapters: [tomcat9(credentialsId: 'tomcat-server', path: '', url: 'http://localhost:8080/')], contextPath: 'hello-world', onFailure: false, war: 'target/*.war'
// deploy to multi env
script {
if (params.env == 'dev') {
sh 'mvn clean deploy'
}
else if (params.env == 'prod') {
sh 'mvn clean deploy'
}
else {
echo 'Invalid environment'
}
}
}
}
stage('Install') {
steps {
timeout(time: 10, unit: 'SECONDS') {
echo "Love you, Sweetheart Ibtisam"
}
}
}
}

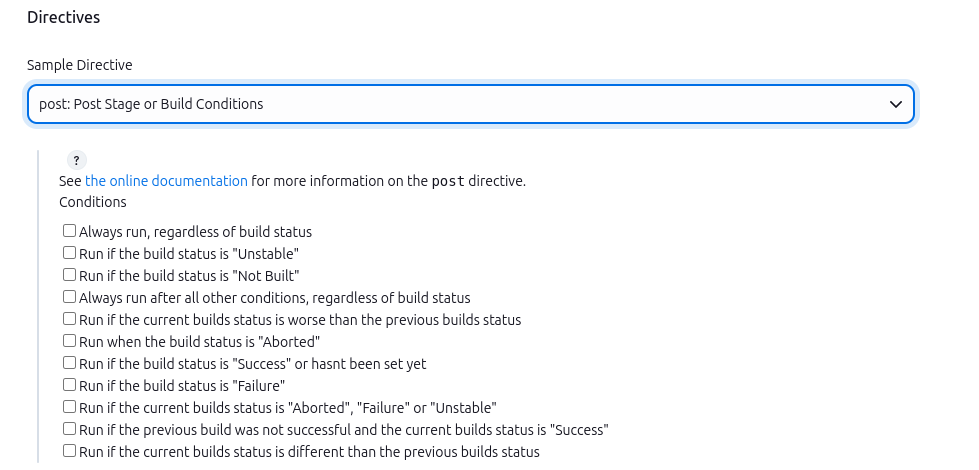

Post Actions¶
post {
success {
// One or more steps need to be included within each condition's block.
build 'Job B' // mention downstream job name
}
failure {
// One or more steps need to be included within each condition's block.
build 'Job C' // mention downstream job name
}
always {
// One or more steps need to be included within each condition's block.
cleanWs() // to clean up the workspace after the job is done
}
}
Email Setup¶
post {
failure {
// Send a notification when the build fails
echo 'Build failed'
mail to: 'loveyou@mibtisam.com',
subject: 'Build failed: ${env.JOB_NAME} - Build #${env.BUILD_NUMBER}',
body: 'Job ${env.JOB_NAME} failed with build number ${env.BUILD_NUMBER}.'
}
success {
// Send a notification when the build is successful
echo 'Build successful'
archiveArtifacts artifacts: '**/target/*.jar', followSymlinks: false, onlyIfSuccessful: true
}
}
Scenario Based Implementation¶
1. Changeset¶
stage('Test') {
// executes this stage only if any change happens in 'path_to_file.txt', otherwise, it will skip this stage
when {
changeset 'path_to_file.txt'
}
steps {
echo 'mvn test'
}
}
2. Change directory¶
stage('Git Checkout') {
steps {
git branch: "${params.Branch_name}", url: 'Github URL' // Use when the pipeline is parameterized.
}
}
stage('Compile') {
steps {
dir('03.Projects/00.LocalOps/0.1.01-jar_Boardgame') {
sh 'mvn compile'
}
}
}
3. Deploy to a specific env (Multi Env)¶
parameters {
choice choices: ['main', 'dev', 'ibtisam'], description: 'write description', name: 'env'
}
stage('Deploy') {
steps {
echo "deploy to multi env"
script {
if (params.env == 'dev') {
sh 'mvn clean deploy'
}
else if (params.env == 'ibtisam') {
sh 'mvn clean deploy'
}
else {
echo 'main'
}
}
}
}
4. Parallel Stage Pipeline¶

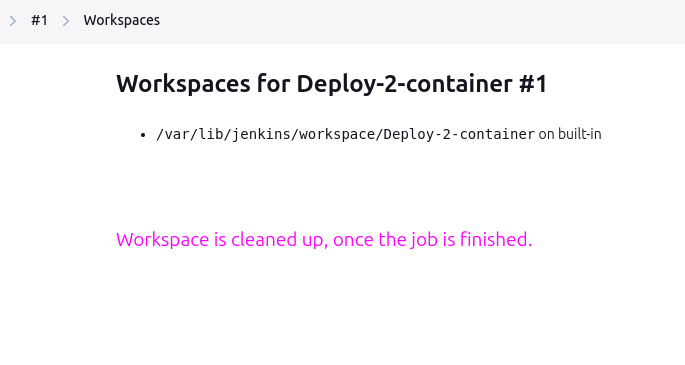

5. Post cleanup¶
post {
always {
echo "cleaning up the workspace after the job is done"
cleanWs()
}
}
6. Timeout¶
stage('Install') {
steps {
timeout(time: 10, unit: 'SECONDS') {
echo "Love you, Sweetheart Ibtisam"
}
}
}
Maven Pipeline¶
pipeline {
agent any
tools {
maven "maven3"
}
stages {
stage('Build') {
steps {
sh 'mvn compile'
sh 'mvn clean test'
sh 'mvn clean package'
}
}
}
post {
success {
archiveArtifacts artifacts: 'target/*.jar', followSymlinks: false, onlyIfSuccessful: true
}
}
}
Python Pipeline¶
pipeline {
agent any
stages {
stage('Setup Virtual Environment') {
steps {
sh '''
# Remove any existing virtual environments
rm -rf IbtisamX
# Create a new virtual environment
python3 -m venv IbtisamX
# Set permissions
chmod -R 755 IbtisamX
# The error /var/lib/jenkins/workspace/.../script.sh.copy: 12: source: not found occurs because the source command is not recognized by the shell executing the script.
# The source command is a shell built-in command, and it is not available in the shell that is executing the script.
# the default shell being used in Jenkins (sh) is not Bash but a more basic shell like dash, which doesn't support source.
# To fix this error, you can use the dot (.) command instead of source to activate the virtual environment.
# Activate virtual environment and install dependencies
. IbtisamX/bin/activate
# Upgrade pip package itself using pip
pip install --upgrade pip
# Install dependencies
sh 'python --version'
pip install -r requirements.txt
'''
/*
sh '''
rm -rf IbtisamX
python3 -m venv IbtisamX
chmod -R 755 IbtisamX
bash -c "
source IbtisamX/bin/activate
pip install --upgrade pip
pip install -r requirements.txt
"
'''
*/
}
}
stage('Run Tests - Pytest') {
steps {
sh '''
# Activate virtual environment and run tests with coverage
. IbtisamX/bin/activate
python --version
# Install coverage package for pytest framework
pip install pytest pytest-cov
# Run tests with pytest and generate coverage reports
pytest --cov=app tests/ --cov-report=xml --cov-report=term-missing --disable-warnings
'''
}
}
stage('Run Tests - Unittest') {
steps {
sh '''
# Activate virtual environment and run tests with coverage
. IbtisamX/bin/activate
python --version
# Install coverage package for pytest framework
pip install coverage
# Run tests with pytest and generate coverage reports
coverage run -m unittest discover
coverage xml
'''
}
}
}
}
Jenkinsfile for Node.js¶
pipeline {
agent any
tools {
nodejs 'nodejs23'
}
stages {
stage('Build') {
steps {
dir('SonarQube/Nodejs-jest') {
nodejs('nodejs23') {
sh 'npm install'
sh 'npm run test' // test is the script name in package.json, that's it is written as npm `run` test
}
}
}
}
}
}
