Configuring Webhook in Jenkins

This guide explains how to configure a webhook in Jenkins with detailed explanations, the webhook mechanism, and example payloads.

What is a Webhook?

A webhook is a mechanism that allows applications to send real-time data to other applications or services when specific events occur. For example, a webhook from GitHub can notify Jenkins whenever code is pushed to a repository. It is essentially an automated way for systems to communicate without the need for polling.

Key Components of a Webhook

  1. Event Trigger: Defines when the webhook should fire (e.g., a push event or a pull request in GitHub).
  2. URL Endpoint: Specifies the URL where the event data (payload) is sent. For Jenkins, this is usually the URL of a webhook plugin like http://JENKINS_URL/generic-webhook-trigger/invoke.
  3. Payload: The data sent by the webhook, typically in JSON format. It contains information about the event (e.g., branch name, commit details).

Example Payload

When a webhook is triggered, it sends a payload to the specified URL. Here's an example payload from GitHub for a push event:

{
  "ref": "refs/heads/main",
  "repository": {
    "name": "example-repo",
    "full_name": "user/example-repo"
  },
  "head_commit": {
    "id": "abc123",
    "message": "Updated README.md",
    "author": {
      "name": "John Doe",
      "email": "johndoe@example.com"
    }
  },
  "pusher": {
    "name": "Ibtisam",
    "email": "ibtisam@example.com"
  }
}

Key Fields:

  • ref: Specifies the branch (e.g., refs/heads/main).
  • repository: Contains repository details.
  • head_commit: Details of the most recent commit.
  • pusher: The user who pushed the changes.

Explanation of Configuration in Jenkins Job

Post Content Parameters

1. Variable: ref

  • Purpose: This is the name of the variable where the extracted data will be stored.
  • Why: You've chosen ref as the variable name, which is meaningful if you're working with Git references like branch names or tags.

2. Expression: $.ref

  • What it does: This is a JSONPath expression used to extract the ref field from the payload sent by the webhook (e.g., GitHub or GitLab webhook).
  • Why this value: Webhook payloads often include a ref field that specifies the branch or tag associated with an event (like a push). For example:

{
  "ref": "refs/heads/main",
  "repository": {
    "name": "example-repo"
  }
}
Here, the ref value is refs/heads/main.

Token Configuration

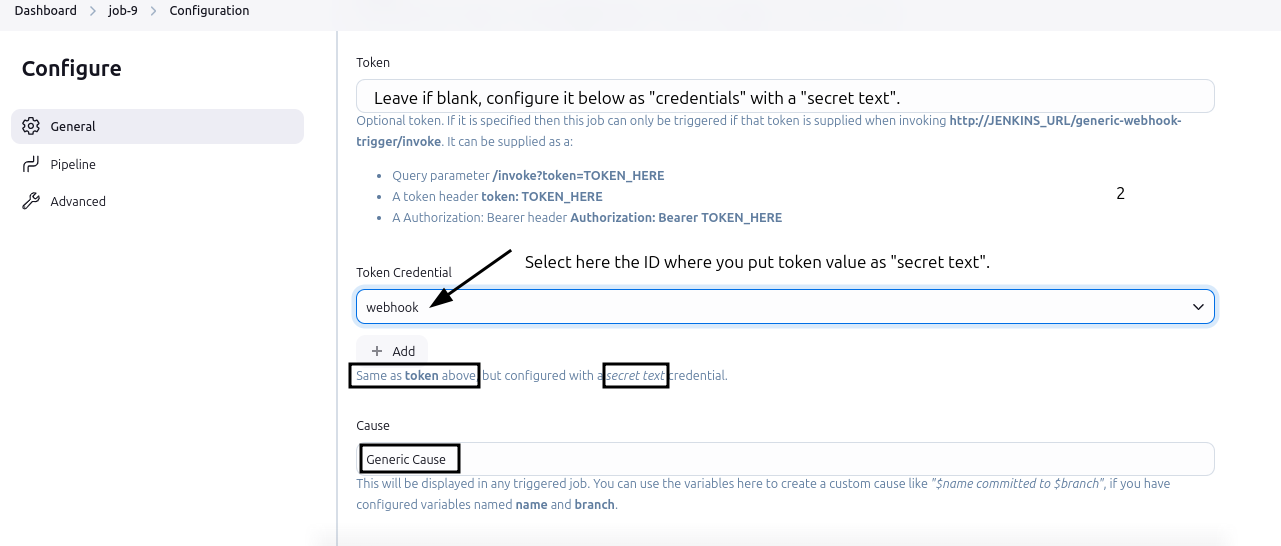

1. Token

  • What it does: This optional security feature ensures the webhook will only trigger the Jenkins job if the correct token is included in the request.
  • How it works:

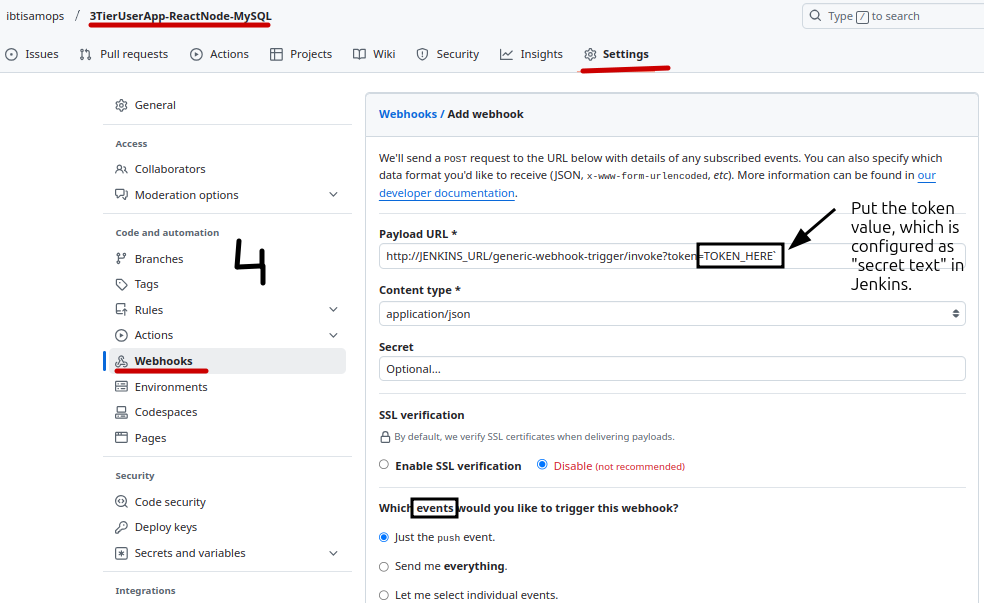

  • Passed in the webhook URL as a query parameter: http://JENKINS_URL/generic-webhook-trigger/invoke?token=TOKEN_HERE

  • Alternatively, it can be passed in the HTTP headers (token: TOKEN_HERE) or as a bearer token.
  • Why it’s used: To ensure that only authorized systems can trigger the job.

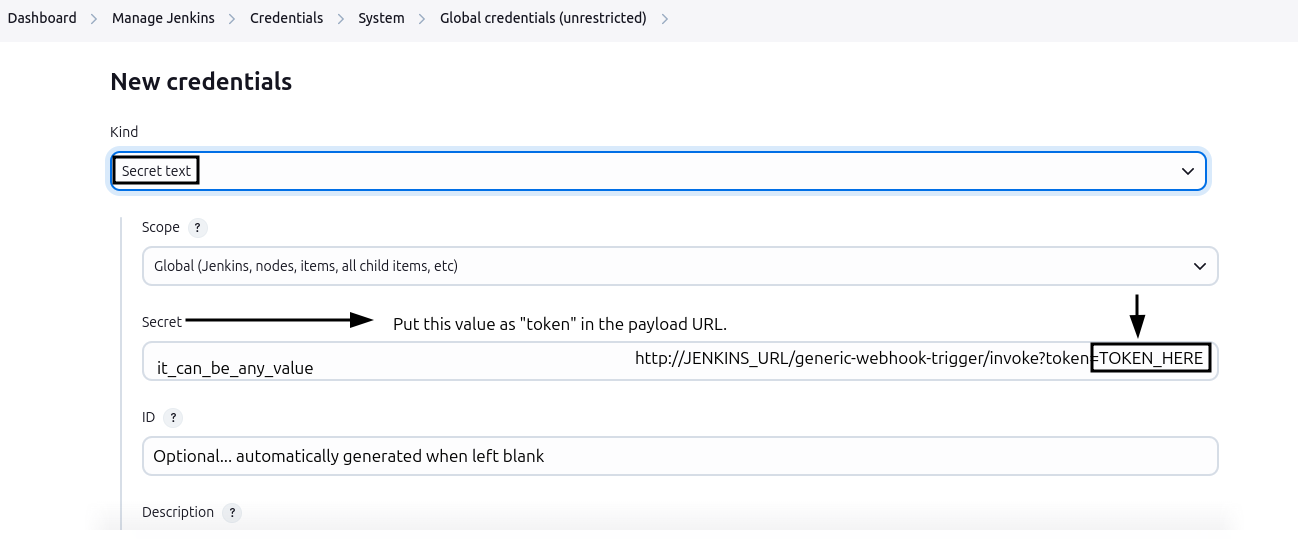

2. Token Credential

  • What it does: Allows you to use pre-configured secret credentials in Jenkins for token authentication.
  • Example:
  • If the credential webhook is selected, Jenkins will validate the incoming webhook request against the stored token.

Cause

  • What it does: Defines a custom message that will appear in the Jenkins build cause.
  • Example:
  • If you use $name committed to $branch, Jenkins will replace $name with the pusher's name and $branch with the branch name from the payload.
  • Why it’s useful: Provides better context for the triggered build, making it clear why the job ran.

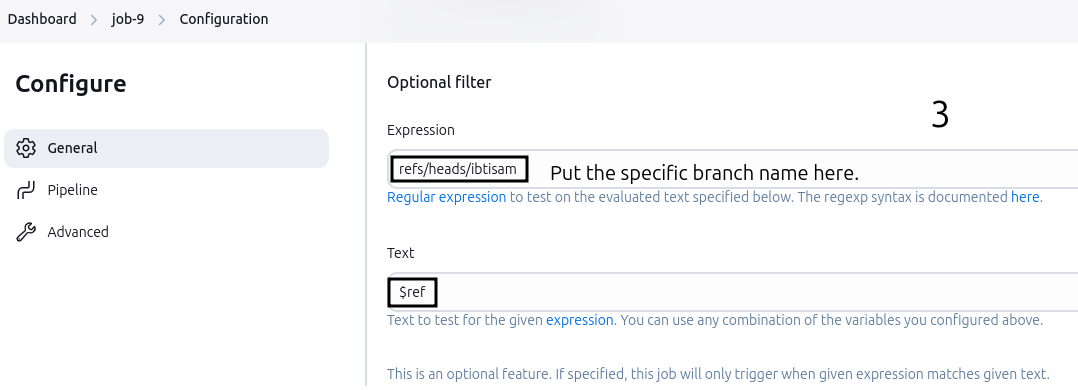

Optional Filter

1. Expression: refs/heads/ibtisam

  • What it does: This is a regular expression to match the branch reference that triggers the job.
  • Why this value: By specifying refs/heads/ibtisam, you're ensuring that the job triggers only for events on the ibtisam branch.

2. Text: $ref

  • What it does: Refers to the value extracted earlier in the "Post Content Parameters" section. It dynamically populates the value of the ref field from the webhook payload.
  • Why this value: It links the extracted value of ref to the regular expression check. If $ref matches refs/heads/ibtisam, the job is triggered.

Why These Configurations?

  • Purpose: These settings filter webhook events so that the Jenkins job only runs for a specific branch (ibtisam in this case).
  • Denotation:
  • ref: Captures the branch or tag name from the webhook payload.
  • Regular expression (refs/heads/ibtisam): Filters events for a specific branch.
  • $ref: Dynamically evaluates the extracted branch name.

How These Settings Work Together

  1. When a webhook event occurs (e.g., a push to the branch refs/heads/ibtisam), the webhook sends a payload to the specified Jenkins URL.
  2. Jenkins:
  3. Extracts the ref field using JSONPath ($.ref).
  4. Matches the extracted value ($ref) against the regular expression (refs/heads/ibtisam) to determine whether the job should be triggered.
  5. Validates the request using the token (if specified).
  6. If all conditions are met, Jenkins triggers the job and records the cause (e.g., "Ash committed to Ibtisam").

Steps to Configure Webbook

1. Pipeline

  1. Install Generic Webhook Trigger Plugin in Jenkins.
  2. Configure the plugin by specifying the webhook URL, token, and other settings as described above.
    • Webhook URL: The URL where the webhook will send its payload.
    • Token: The secret token used for authentication.
    • Cause: The message that will appear in the Jenkins build cause.
    • Optional Filter: The regular expression and text to filter the webhook events.

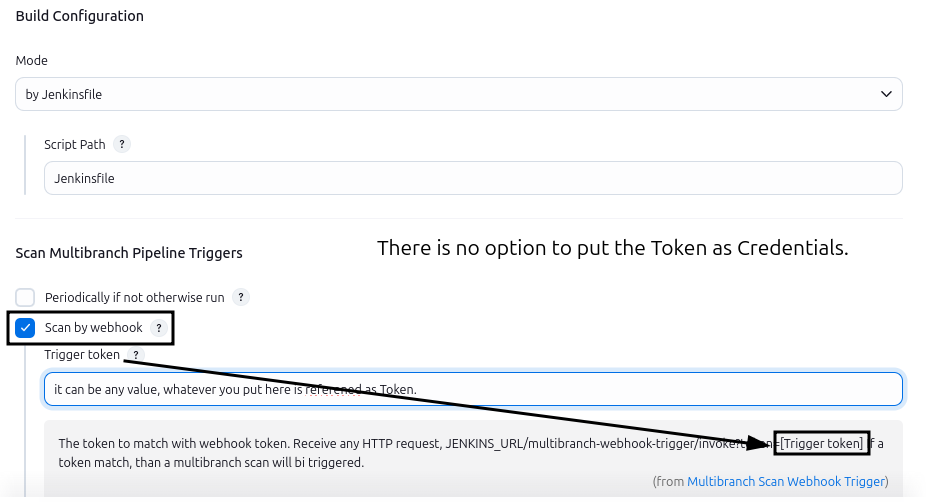

2. Multibranch Pipeline

  1. Install Multibranch Scan Webhook Trigger Plugin in Jenkins.
  2. Configure the plugin by specifying the webhook URL, token, and other settings as described above.

Note: This plugin does not provide an option to put the Token as Credentials with Secret Text.
