Publishing Maven Artifacts to Nexus using Jenkins¶

1. Update pom.xml to Integrate with Nexus¶

Step 1: Mention the Nexus Repository Type: Snapshots or Releases¶

<!-- Root element for the project metadata -->
<project>
    <!--
        Group ID: Specifies the unique identifier for the project's group or organization.
        Typically represents a domain or company name in reverse format.
    -->
    <groupId>com.ibtisam-iq</groupId>

    <!--
        Artifact ID: The unique name of the project or module.
        Used to identify the artifact within the group.
    -->
    <artifactId>bankapp</artifactId>

    <!--
        Version: Specifies the version of the project.
        - Use 'SNAPSHOT' in the version (e.g., 0.0.1-SNAPSHOT) to publish to the snapshot repository.
        - Use a specific version number (e.g., 1.0.0) to publish to the release repository.
        This decision determines whether the artifact is considered a development version (SNAPSHOT)
        or a stable release version.
    -->
    <version>0.0.1-SNAPSHOT</version>

    <!--
        Name: A human-readable name for the project.
        This is purely for informational purposes and does not affect repository selection.
    -->
    <name>bankapp</name>

    <!--
        Description: A brief description providing details about the project.
        This is useful for documentation or repository indexing.
    -->
    <description>Banking Web Application</description>
</project>

Step 2: Mention the Nexus Repository URL in the pom.xml¶

Unlike SonarQube, you need URL of the nexus repo, not the server URL itself.
Unlike Sonarqube, you need to add the URL in the source code, not inside the Jenkins UI.

<project>
    <!-- Other project information -->
    <distributionManagement>
        <repository>
            <id>maven-releases</id>
            <url>NEXUS-URL/repository/maven-releases/</url>
        </repository>
        <snapshotRepository>
            <id>maven-snapshots</id>
            <url>NEXUS-URL/repository/maven-snapshots/</url>
        </snapshotRepository>
    </distributionManagement>
    <!-- Other project configuration -->
</project>

Replace NEXUS-URL with the URL of your Nexus repository.

2: Add Nexus Credentials to Jenkins¶

Install a plugin Config File Provider. It provides us the ability to provide configuration files.

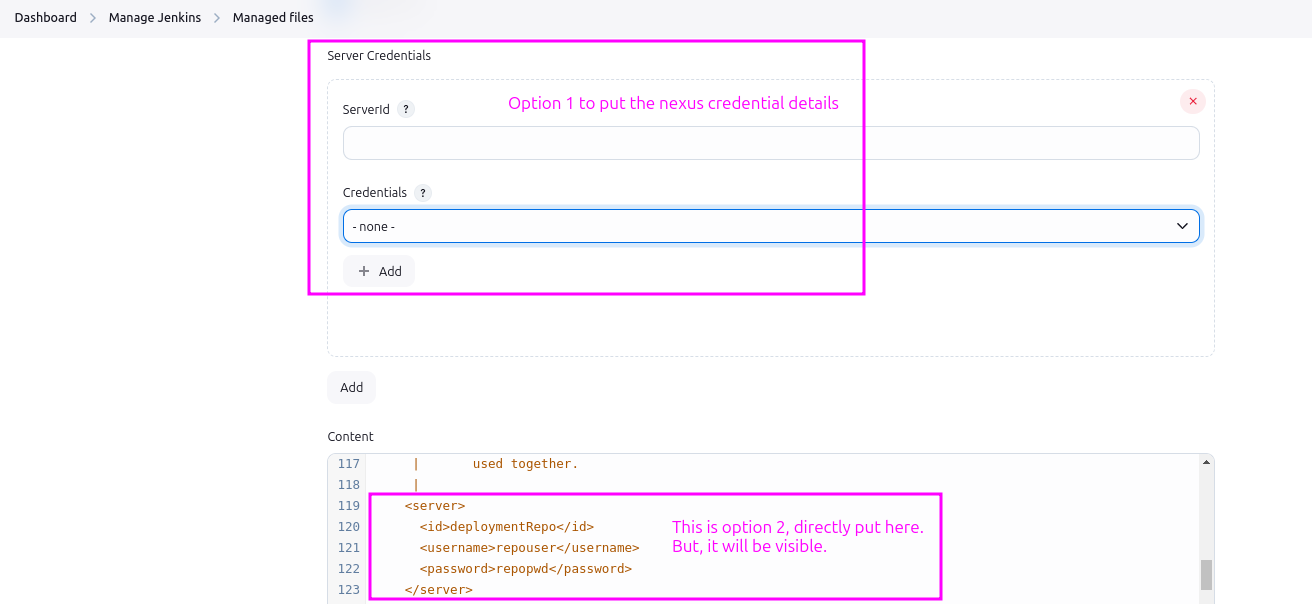

Go to Jenkins > Manage Jenkins > Configure System > Manage Files > Global Maven settings.xml.
You can put the credentials here in two different ways.

Howerver, you can also put the credentials in the settings.xml file in the Jenkins workspace.

Step 1: Add Maven Releases and Snapshots Repos¶

Please note that you need to add the proxy repo for both releases and snapshots.
You can do this by adding the following code in the settings.xml file.

<server>
<id>maven-releases</id>                 <!-- put the repo name here -->
<username>your-username</username>      <!-- put the username of your nexus account here -->
<password>your-password</password>      <!-- put the password of your nexus account here -->
</server>

<server>
<id>maven-snapshots</id>                <!-- put the repo name here -->
<username>your-username</username>      <!-- put the username of your nexus account here -->
<password>your-password</password>      <!-- put the password of your nexus account here -->
</server>

Step 2: Add Maven Proxy Repo (Optional, but recommended)¶

If you are behind a proxy, you need to add the proxy repo as well.
You can add the proxy repo in the settings.xml file.
Note that you need to add the proxy repo for both releases and snapshots.
Please click here for more information.

3: Install Maven Plugins¶

Install Maven Integration. It provides us the ability to run maven commands.
Install Pipeline Maven Integration. It provides us the ability to run maven commands in pipeline.

Stage: Deploy Artifact to Nexus¶

stage('Code-Build') {
    steps {
        sh "mvn clean package"
    }
}

stage('Deploy Artifact To Nexus') {
    steps {
        withMaven(globalMavenSettingsConfig: 'nexus-ID', jdk: 'jdk17', maven: 'maven3', mavenSettingsConfig: '', traceability: false) {
            sh "mvn deploy"
        }
    }
}

`withMaven` Step in Jenkins¶

The withMaven step in Jenkins is used to integrate Maven builds with Jenkins pipelines. It provides an environment where Jenkins can manage Maven-related tasks, such as building, testing, and deploying Java applications, while automatically handling configurations like:

Key Parameter in `withMaven`¶

`globalMavenSettingsConfig`¶

Refers to a pre-configured Maven settings file in Jenkins.
The value (nexus-ID) is an identifier for a stored Maven settings configuration.
It typically includes details like:
Repository URLs.
Authentication credentials for private repositories like Nexus or Artifactory.
Proxy settings or build profiles.

What It’s For¶

In this specific context: - Ensures the mvn deploy command uses the correct Maven settings file. - Helps Jenkins connect securely to the Nexus repository (or any artifact repository) by: - Resolving dependencies during the build. - Deploying the built artifacts to the repository.

Publishing Node.js Artifacts to Nexus using Jenkins¶

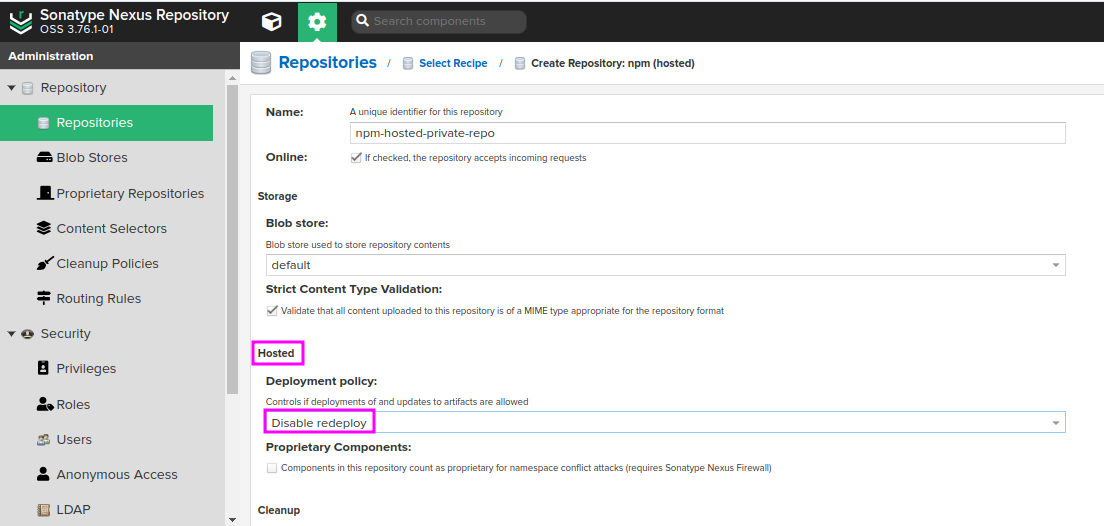

Step 1: Create a Nexus Repository¶

Step 1: Create a Custom `.npmrc` File in Jenkins¶

Install the required plugins Config File Provider Plugin and NodeJS Plugin in Jenkins.
Go to Manage Jenkins > Tools > NodeJS Installations > and configure the tool.
Navigate to Jenkins Configuration:
Go to Manage Jenkins > Managed Files.
Create a New Custom File:
Click on Add a new Config.
Select Custom file and name it .npmrc.
Add Authentication Details:
Convert your Nexus credentials to base64:
```
echo -n 'admin:ibtisam' | base64
```
Example output:
```
YWRtaW46aWJ0aXNhbQ==
```

Add the following lines to the .npmrc file:

For Snapshot Repository:

registry=http://13.235.245.200:8081/repository/npm-snapshot
//13.235.245.200:8081/repository/npm-snapshot/:_auth=YWRtaW46aWJ0aXNhbQ==

For Release Repository:

registry=http://13.235.245.200:8081/repository/npm-release
//13.235.245.200:8081/repository/npm-release/:_auth=YWRtaW46aWJ0aXNhbQ==

For Newly Created Hosted Repository:

registry=http://13.235.245.200:8081/repository/npm-hosted-private-repo
//13.235.245.200:8081/repository/npm-hosted-private-repo/:_auth=YWRtaW46aWJ0aXNhbQ==

Step 2: Jenkins Pipeline Configuration¶

Create a Jenkins pipeline with the following stages:

pipeline {
    agent any
    stages {
        stage('Git') {
            steps {
                git branch: 'main', url: 'https://github.com/ibtisam-iq/Node.js-Jest.git'
            }
        }
        stage('NPM Dependencies') {
            steps {
                nodejs('node23') {
                    sh "npm install"
                }
            }
        }
        stage('Publish to Nexus') {
            steps {
                configFileProvider([configFile(fileId: 'npm', targetLocation: '.')]) {
                    nodejs('node23') {
                        sh "npm publish"
                    }
                }
            }
        }
    }
}

The .npmrc file created earlier is provided to the pipeline using configFileProvider.
The artifacts are published to Nexus using the npm publish command.
Replace the registry URL in the .npmrc file with the actual Nexus repository URL.
