Integrating SonarQube with Jenkins¶

Steps to Integrate¶

• Install Plugins: SonarQube Scanner plugin in Jenkins to publish the results to SonarQube Server.

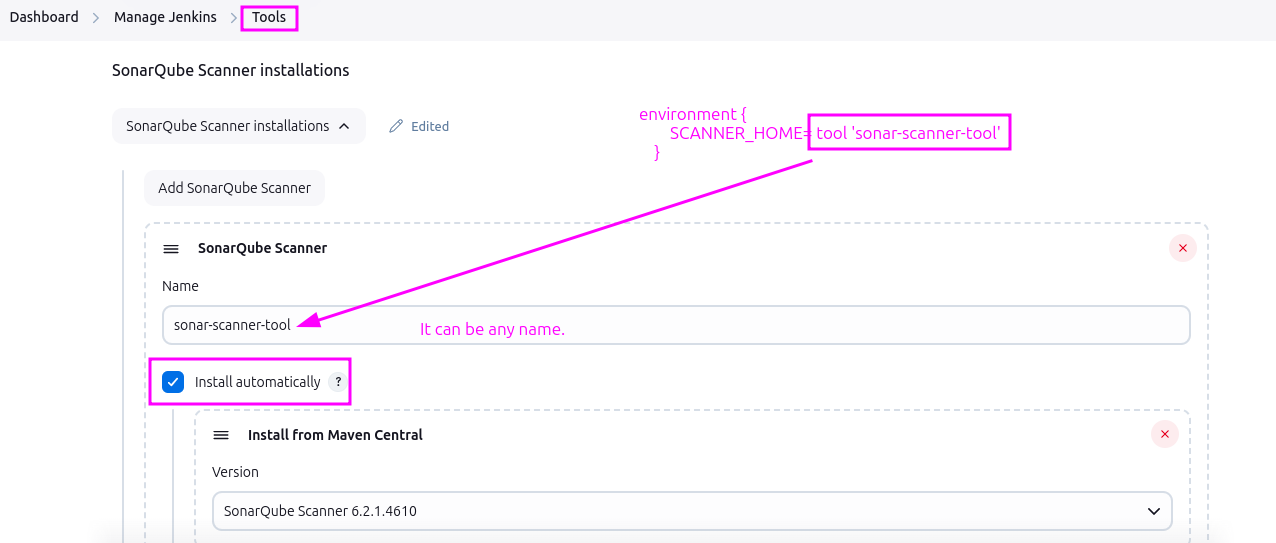

• Add SonarQube Scanner: Manage Jenkins > Tool, configure scanner.

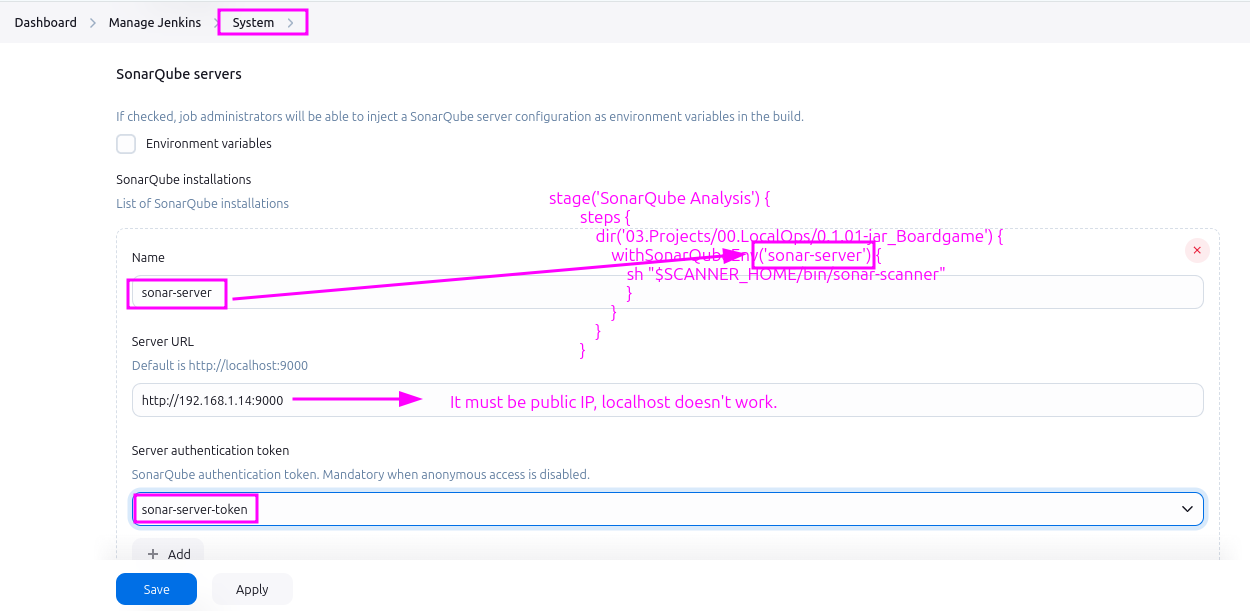

• Configure SonarQube Server: Manage Jenkins > System, add SonarQube server details.

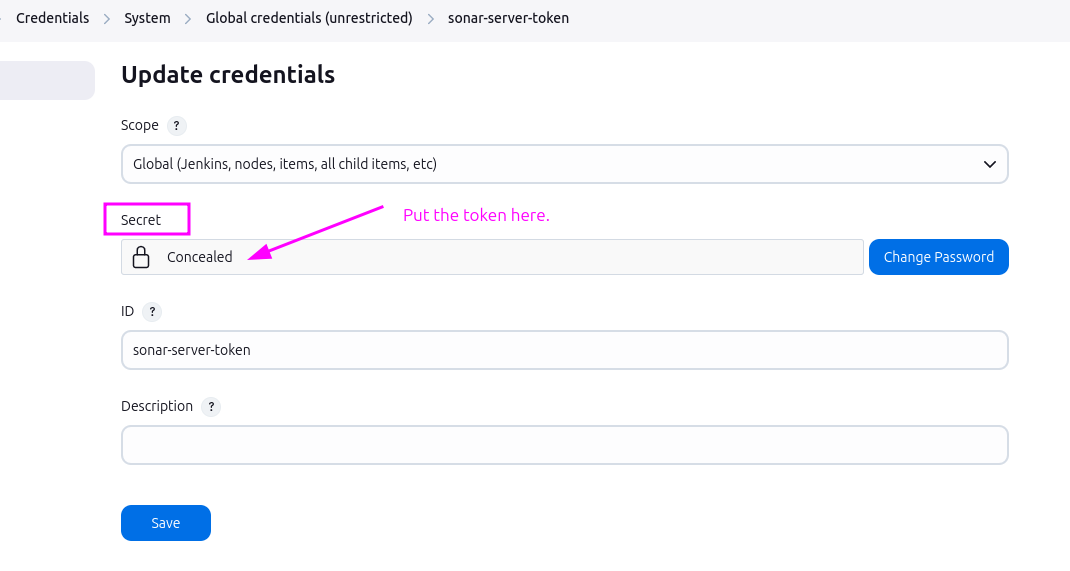

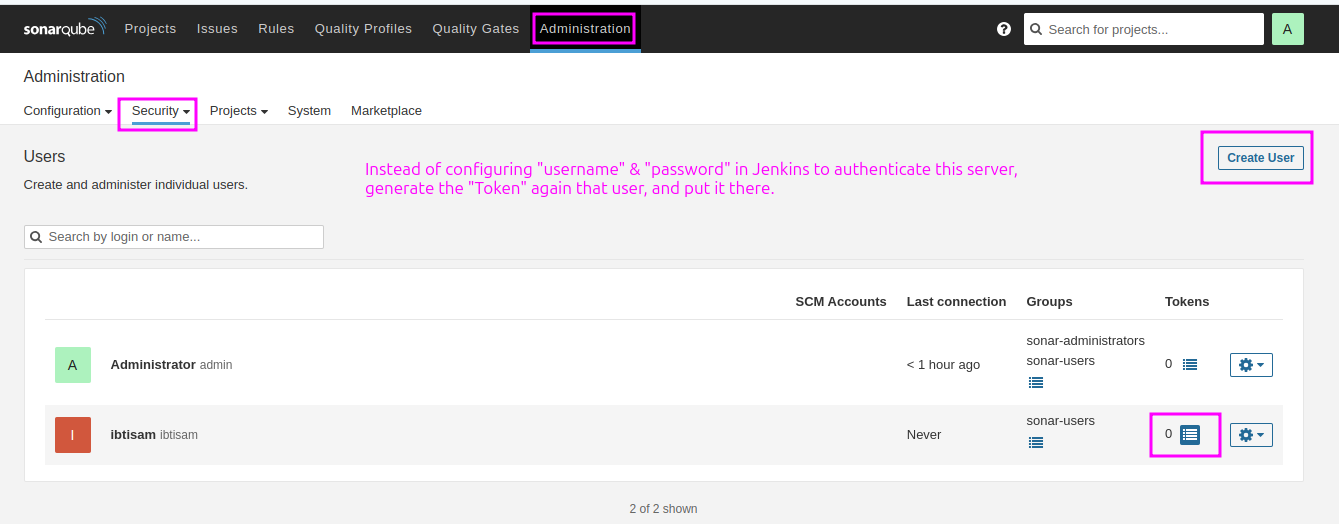

• Best Practice: Use an access token (generated in SonarQube) instead of a username and password. Save the token as a Secret Text under Credentials.

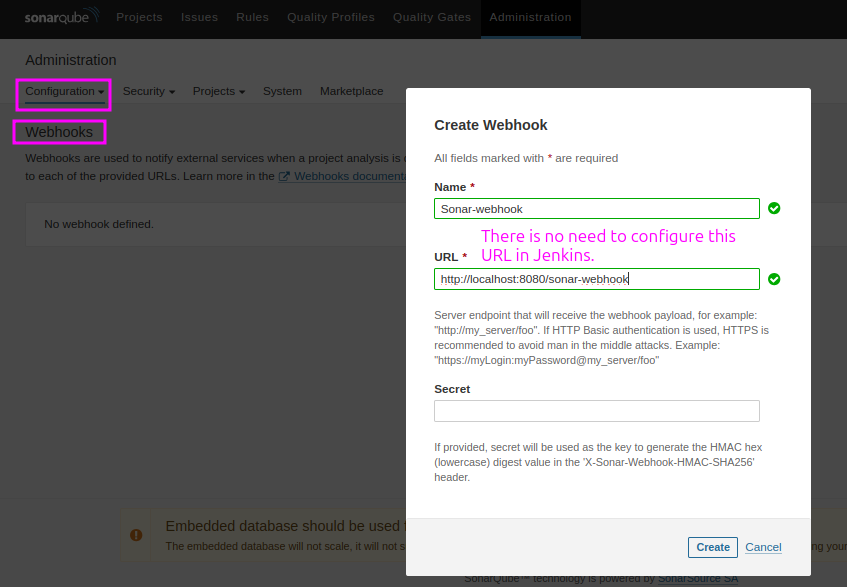

• Configure Webhook: Set up a webhook in SonarQube Server to send analysis results to Jenkins.
  • Read the official documentation here

Pipeline Stages¶

1. SonarQube Analysis

   // This stage must be after "Testing"

   stage('SonarQube Analysis') {
        steps {
            dir('03.Projects/00.LocalOps/0.1.01-jar_Boardgame') {
                withSonarQubeEnv('sonar-server') {
                    sh "$SCANNER_HOME/bin/sonar-scanner"
                    }
                }
            }
        }


2. Quality Gate Check

   stage('Quality Gate') {
       steps {
            timeout(5) {
                waitForQualityGate abortPipeline: false
            }
       }
   }


For Python Projects¶

Add the following depencendies to your requirements.txt file:

sonar-scanner==4.6.2.2472
# For testing and code coverage
pytest==7.4.2
pytest-cov==4.1.0
coverage==7.3.1

Configuration¶

• Create sonar-project.properties file in the root directory as following.
• For details, please refer to the official documentation here.
